Thinking Outside the Box: Smart Solutions for Oversized Cargo
We understand that not all cargo fits inside a standard container and that oversized cargo requires special handling and care. Whether you need to ship heavy machinery, luxury yachts, helicopters, or turbines, our project cargo team can create safe, secure, and competitive logistics solutions for all types of special cargo.
At MSC we have over 50 years of experience shipping goods of all shapes and sizes across the world. With a team of experts by your side, you can rest assured that your project cargo shipment will be planned down to the last detail and delivered most efficiently. Due to the specialist nature of project cargo, we consider each out-of-gauge and breakbulk shipment on a case-by-case basis, tailoring our solutions around your unique requirements to deliver your cargo to any destination.
Remove the challenge and stress of shipping oversized cargo by trusting the experts at MSC.
Unique Breakbulk Solutions

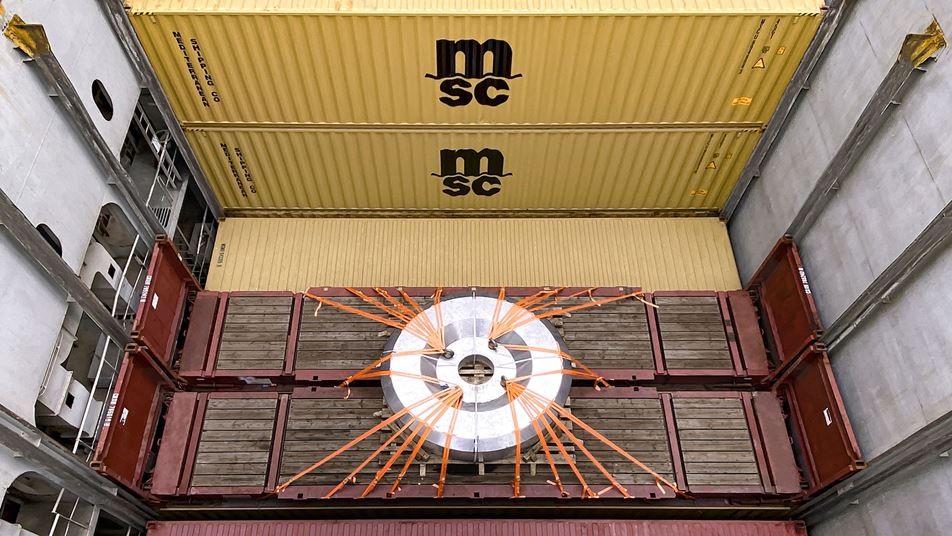

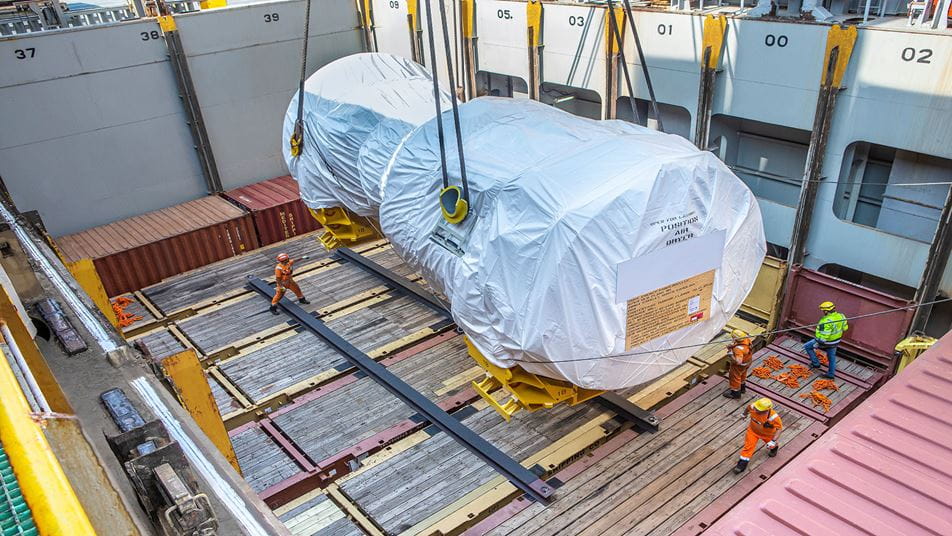

On board vessels, we store your cargo on a pre-prepared bed containing multiple flat racks, providing a safe working environment for stevedores and ensuring compliance with IMO CSS Code Annex 13 requirements. As part of our feasibility studies and preparation, we use 3D modelling to demonstrate handling stowage and lashing requirements.
Our team also focuses on loss and claim prevention for very large and/or heavy cargo, ensuring a safe and smooth delivery.
Out of Gauge Cargo

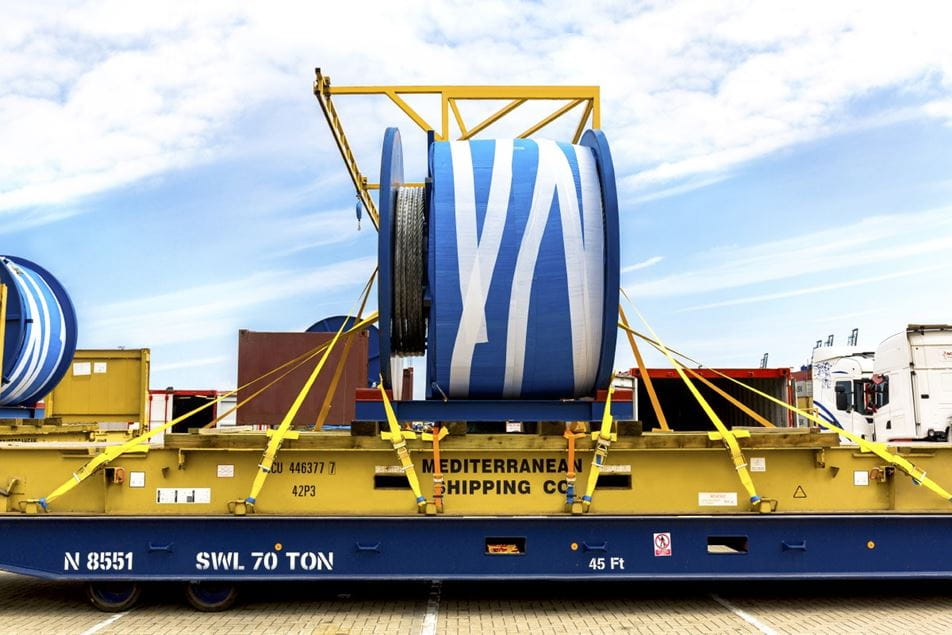

If your cargo does not fit a standard container, we will carefully load and secure (lash) it onto a platform, single flat rack or open top unit. Our experts will work with you to create a tailor-made solution for a safe and secure delivery. We have access to specialised equipment and handling facilities such as container lift trailers, floating cranes and cargo securing solutions.
Our project cargo solutions go beyond shipping: we also offer door-to-door deliveries by road, rail and barge.
Additional Local Solutions
In some countries, we offer additional solutions such as loading, lashing and securing cargo at your origin port or nearby depot. We can also arrange inland collection and deliveries using a variety of equipment, as well as police/inland transport notifications. Stevedoring, port lashing and port storage facilities can also be provided if required. Contact us to find out whether these options are available in your country or region.
Our experts help with the planning and execution of special loadings, ensuring maximum safety and security for each and every project.
Download your selection
-
- No selection
Our Project Cargo Equipment
We offer a variety of options for very large and/or very heavy cargo. Our experts can advise you on the best option for your cargo. As dimensions may slightly vary depending on the manufacturer, contact our local experts if you require further details.
20' COLLAPSIBLE FLAT RACK - 22 P3
| INTERNAL DIMENSIONS | BTW HEADERS | BTW CORNERS | |||
| L | W | H | L | L | W |
| 5.96 m | 2.40 m | 2.29 m | 5.85 m | 5.42 m | 2.06 m |
| 19' 7'' | 7' 10'' | 7' 6'' | 19' 2'' | 17' 9'' | 6' 9'' |
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
| 37,000 Kgs | 3,000 Kgs | 40,000 Kgs |
| 81,571 Lbs | 6,613 Lbs | 88,184 Lbs |
20' COLLAPSIBLE FLAT RACK - 22 P3
| INTERNAL DIMENSIONS | BTW HEADERS | BTW CORNERS | |||
| L | W | H | L | L | W |
| 5.96 m | 2.40 m | 2.29 m | 5.85 m | 5.42 m | 2.06 m |
| 19' 7'' | 7' 10'' | 7' 6'' | 19' 2'' | 17' 9'' | 6' 9'' |
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
| 37,000 Kgs | 3,000 Kgs | 40,000 Kgs |
| 81,571 Lbs | 6,613 Lbs | 88,184 Lbs |
40' COLLAPSIBLE FLAT RACK - 42 P3
| INTERNAL DIMENSIONS | BTW HEADERS | BTW CORNERS | |||
| L | W | H | L | L | W |
|
11.65 m |
2.38 m | 2.29 m | 12.06 m | 11.66 m | 2.22 m |
| 38' 2.6'' | 7' 9'' | 7' 6.1'' | 39' 6.8'' | 38' 3'' | 7' 3.4'' |
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
| 47,550 Kgs | 4,950 Kgs | 52,500 Kgs |
| 104,820 Lbs | 10,910 Lbs | 115,730 Lbs |
40' COLLAPSIBLE FLAT RACK - 42 P3
| INTERNAL DIMENSIONS | BTW HEADERS | BTW CORNERS | |||
| L | W | H | L | L | W |
|
11.65 m |
2.38 m | 2.29 m | 12.06 m | 11.66 m | 2.22 m |
| 38' 2.6'' | 7' 9'' | 7' 6.1'' | 39' 6.8'' | 38' 3'' | 7' 3.4'' |
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
| 47,550 Kgs | 4,950 Kgs | 52,500 Kgs |
| 104,820 Lbs | 10,910 Lbs | 115,730 Lbs |
40' HIGH CUBE COLLAPSIBLE FLAT RACK - 45 P3
| INTERNAL DIMENSIONS | BTW HEADERS | BTW CORNERS | |||
| L | W | H | L | L | W |
|
11.65 m |
2.38 m | 2.56 m | 12.06 m | 11.66 m | 2.22 m |
| 38' 2.6'' | 7' 9'' | 8' 4.8'' | 39' 6.8'' | 38' 3'' | 7' 3.4'' |
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
| 47,300 Kgs | 5,200 Kgs | 52,500 Kgs |
| 104,278 Lbs | 11,464 Lbs | 115,742 Lbs |
40' HIGH CUBE COLLAPSIBLE FLAT RACK - 45 P3
| INTERNAL DIMENSIONS | BTW HEADERS | BTW CORNERS | |||
| L | W | H | L | L | W |
|
11.65 m |
2.38 m | 2.56 m | 12.06 m | 11.66 m | 2.22 m |
| 38' 2.6'' | 7' 9'' | 8' 4.8'' | 39' 6.8'' | 38' 3'' | 7' 3.4'' |
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
| 47,300 Kgs | 5,200 Kgs | 52,500 Kgs |
| 104,278 Lbs | 11,464 Lbs | 115,742 Lbs |
20' OPEN TOP STEEL CONTAINER - 22 U1
| INTERNAL DIMENSIONS | DOOR | |||
| L | W | H | W | H |
| 5.89 m | 2.35 m | 2.38 m |
2.34 m | 2.28 m |
| 19' 3.9'' | 7' 8.5'' | 7' 9'' | 7' 8.1'' | 7' 5.7'' |
| ROOF | HEADER | ||
| W | L | H | W |
| 2.52 m | 5.67 m | 2.29 m | 1.94 m |
| 8' 3.2'' | 18' 7.2'' | 7’ 6.1'' | 6’ 4.4’’ |
20' OPEN TOP STEEL CONTAINER - 22 U1
| INTERNAL DIMENSIONS | DOOR | |||
| L | W | H | W | H |
| 5.89 m | 2.35 m | 2.38 m |
2.34 m | 2.28 m |
| 19' 3.9'' | 7' 8.5'' | 7' 9'' | 7' 8.1'' | 7' 5.7'' |
| ROOF | HEADER | ||
| W | L | H | W |
| 2.52 m | 5.67 m | 2.29 m | 1.94 m |
| 8' 3.2'' | 18' 7.2'' | 7’ 6.1'' | 6’ 4.4’’ |
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
| 28,180 Kgs | 2,300 Kgs | 30,480 Kgs |
| 62,126 Lbs | 5,070 Lbs | 67,196 Lbs |
40' OPEN TOP STEEL CONTAINER - 42 U1
| INTERNAL DIMENSIONS | DOOR | |||
| L | W | H | W | H |
| 12.03 m | 2.35 m | 2.38 m | 2.34 m | 2.28 m |
| 39' 5.6'' | 7' 8.5'' | 7' 9'' | 7' 8.1'' | 7' 5.7'' |
| ROOF | HEADER | ||
| W | L | H | W |
| 2.25 m | 11.8 m | 2.29 m | 1.94 m |
| 7' 4.6'' | 38' 8.5'' | 7' 6.1'' | 6’ 4.4'' |
40' OPEN TOP STEEL CONTAINER - 42 U1
| INTERNAL DIMENSIONS | DOOR | |||
| L | W | H | W | H |
| 12.03 m | 2.35 m | 2.38 m | 2.34 m | 2.28 m |
| 39' 5.6'' | 7' 8.5'' | 7' 9'' | 7' 8.1'' | 7' 5.7'' |
| ROOF | HEADER | ||
| W | L | H | W |
| 2.25 m | 11.8 m | 2.29 m | 1.94 m |
| 7' 4.6'' | 38' 8.5'' | 7' 6.1'' | 6’ 4.4'' |
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
| 26,680 Kgs | 3,800 Kgs | 30,480 Kgs |
| 58,819 Lbs | 8,377 Lbs | 67,196 Lbs |
Because you Need More than Port-to-Port Services
Our project cargo solutions go beyond shipping. We also offer a full portfolio of solutions including door-to-door deliveries by road, rail, and barge. Reduce the challenges and stress you face with project cargo shipping and let our team of experts create a bespoke solution designed to meet your needs.
